KIN52 Series
Summary
Technical specifications
Application
Related products
Download
Summary
Gallery
Video

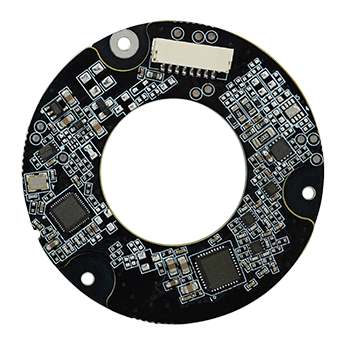

The KIN52 encoder is an absolute rotary encoder with a hollow structure, making it easy to arrange cables or mount shafts. It is developed based on inductive principles, offering superior performance, stability, and reliability.

Product characteristics

High reliability, impervious to contamination,  unaffected by strong magnetic fields;

High precision, with repeatability reaching up to ±3";

Distributed induction read head design, allowing for  greater installation tolerance and reducing the  impact of installation tolerances on accuracy.


Product advantages

Non-contact installation;
Ultra-thin structural design;

Conquer Challenging Environments;

Off-axis Advantages and Multi-Scenario Applications.

Technical specifications
System
Resolution Single-turn: 17/23bit;Multi-turn: 16bit
Communication Specification RS485, SSI, BISS-C
Baud Rate 2.5Mbps
Signal Format Serial Communication Protocol
Electrical
Supply Voltage 5 V ± 5%
Main power supply current consumption (typical) 130mA
Differential Output Level High level≥3.5V; Low level≤1.7V
Insulation Resistance 50MΩ
Edge Change Time 100ns
Environment
EMC Features IEC61000-4
Operating Temperature -40℃~85℃
Humidity ≤90%(40℃/21d, based on EN60068-2-78); No Condensing
Shock Impact acceleration 980m/s2 ,11ms; 3 times per direction, total 18 times
Vibration The amplitude is 1.5mm between 10 ~ 55Hz; Acceleration of 98m/s2 between 55~2000 Hz ; 2 hours per axial (XYZ)
