SRMA35 Series
Summary
Technical specifications
Application
Related products
Download
Summary
Gallery
Video

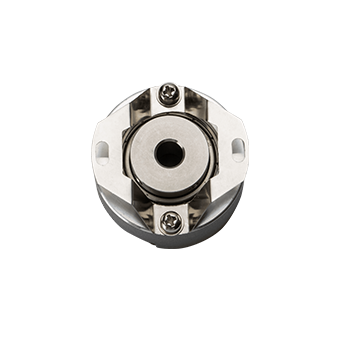

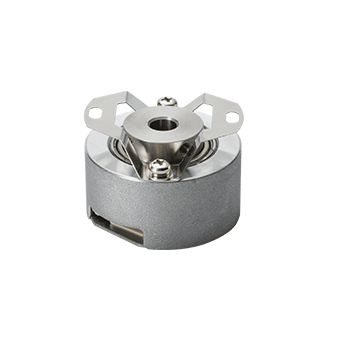

The SRMA35 magnetic-electrical encoder is an absolute rotary encoder, offering reliable and stable performance. It is suitable for applications where general precision is required, but reliable operation is crucial.

The SRMA35 magnetic-electrical encoder features easy installation, bidirectional asynchronous serial communication, and is compatible with various communication protocols. It can be used in the servo industry.


Product characteristics

RS485 interface, bidirectional asynchronous serial communication;

Bidirectional asynchronous serial communication protocol, single-turn 17bit, multi-turn 16bit;

Communication cable length can be up to 50 meters;

Strict EMC testing, meeting the requirements for harsh electromagnetic environments;

Suitable for various types of base motors (40-180 flange).

Product advantages

Easy to install and use, quick and convenient;

Fearless in harsh operating conditions.

Technical specifications
System
Resolution Single-turn: 17bit;Multi-turn: 16bit
Communication Specification RS485
Baud Rate 2.5Mbps
Signal Format Serial Communication Protocol
Electrical
Supply Voltage 5 V ± 5%
Main power supply current consumption (typical) 72mA
Differential Output Level High level≥3.5V; Low level≤1.7V
Insulation Resistance 50MΩ
Edge Change Time 100ns
Environment
EMC Features IEC61000-3
Operating Temperature -10℃~105℃
Humidity ≤90%(40℃/21d, based on EN60068-2-78); No Condensing
IP Rating —(Motor Rear Case Protection)
Shock Impact acceleration 980m/s2 ,11ms; 3 times per direction, total 18 times
Vibration The amplitude is 1.5mm between 10 ~ 55Hz; Acceleration of 98m/s2 between 55~2000 Hz ; 2 hours per axial (XYZ)
Application
Specification
Specification for split multiturn absolute magnetoelectric encoder——SRMA35
3D Model
【整機】SRMA35整體式直軸φ8磁電編碼器(A00)
【整機】SRMA35整體式直軸φ6磁電編碼器(A00)
